Application:

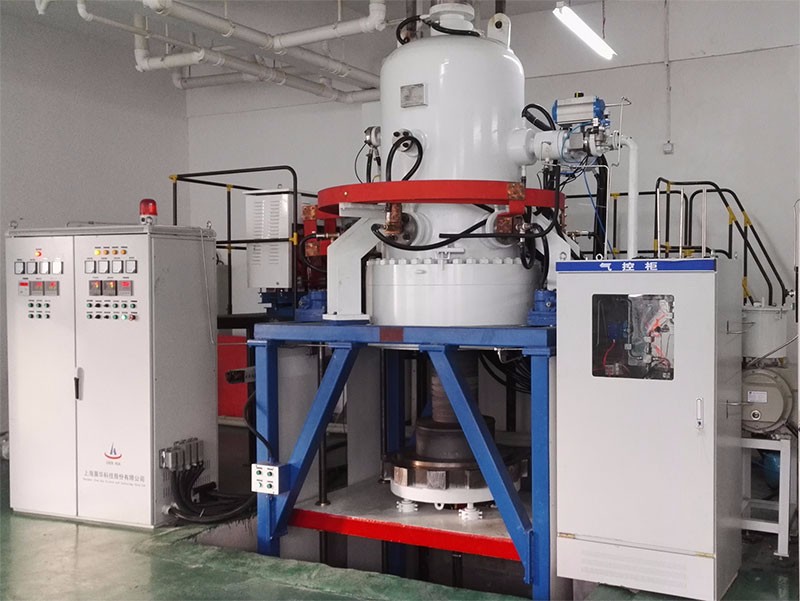

The furnace adopts vertical bottom loading and unloading structure. Max. pressure is 9.8MPa.
The sintering can be done under the condition of the translation between minus and plus gas pressure.
Fit for the sintering of ceramics of silicon nitride and cemented carbide under the high temperature.
Features:
Gas pressure sintering furnace is the special apparatus which assures its safety. To come the point, the control system
adds the safe PLC or safe relay to ensure no accident happens when electrical control system fails.
1 the furnace is designed and made going by the standards of the 2nd pressure vessel. The wall of furnace uses 16MnR or 304.
2 the furnace door is tightened with the quick-release geared flange, which is safe and reliable, easy to operate.
3 Furnace cover goes up and down using electric hydraulic mode, simple operation with the less labor intensity.
4 Material of thermal insulation inside the furnace is carbon deposition composite hard felt, isostatic pressing graphite
made in German is used as heating element.
5 Electrical control system uses automatic operating mode of PLC plus touching screen, owning safe interlock
protective and alarming functions.
Main technical parameters:
Model: ZTQ-180-20
1 Rated power: 180KW
2 Max. temperature: 2000℃
3 Working zone: ?300×500
4 Final vacuum: 1Pa
5 Max. sintering pressure: 9.8MPa
